Capabilities

CAPABILITIES

Newer machines with enhanced capabilities

We are dedicated to continually upgrading our first and secondary operation machines. Outdated or underperforming equipment is promptly replaced with newer, more efficient models that bring advanced capabilities.

Our facility is built with the flexibility and capacity to handle orders of all sizes, efficiently managing both low and high-volume production runs.

In addition to our extensive inventory of single-spindle, multi-spindle, rotary transfer, and CNC machines—offering a full range of cost-effective machining capabilities—we also have a fully equipped and staffed secondary operations department.

First Operation

CNC Capabilities

[Up to 65mm capacity]

Cubic GTV-27 CNC Turning Centre (3)
Hyundai-WIA L230LMSA CNC Multi Axis Turning Centre [65mm Capacity] (1)
Hyundai-WIA KIT-250 CNC Turning Centre [32mm Capacity] (1)
Hyundai-WIA E160A CNC Turning Centre [45mm Capacity] (2)
Miyano BNJ-42S 4-Axis Twin Turret, Twin Spindle CNC Turning Centre [42mm Capacity] (3)
Miyano BNC-34S CNC Automatic Turning Centre [34mm Capacity] (1)
Miyano BNC-51SY6 CNC Automatic Turning Centre [51mm Main-Spindle, 41mm Sub-Spindle] (2)
Citizen C32-VIII CNC Swiss Type Multi-Axis Automatic Lathe [32mm Capacity] (1)
Hanwha XD32II He & Hy CNC Swiss Lathe [38 mm Capacity] (2)
Hanwha XP12S CNC Swiss Lathe [12mm Capacity] (1)

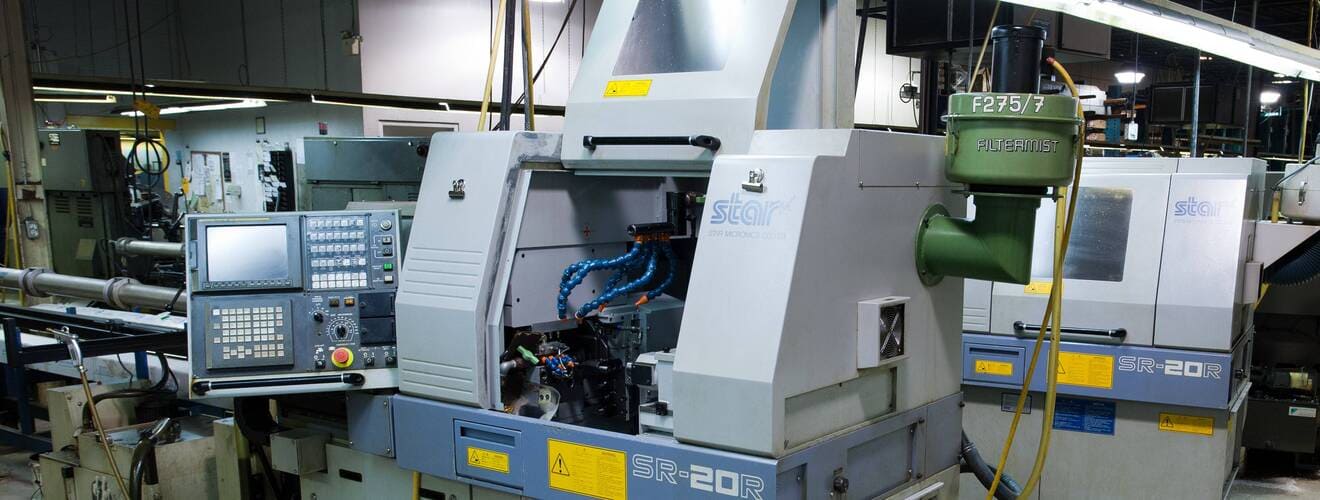

Star SR-20R CNC Swiss Type Multi-Axis Automatic Lathe [20mm Capacity] (5)
Star SR-32J CNC Swiss Type Multi-Axis Automatic Lathe [32mm Capacity] (2)
Hyundai-WIA SPT V30T CNC Dual Pallet Machining Centre (1)
Hyundai-WIA SPT V500D Machining Centre (1)
Some of the above machines have automatic bar loaders

Multi-Spindle Capabilities

[Up to 1-3/4" capacity]

Davenport 5-Spindle Automatic Screw Machines [7/8″ Capacity] (14)
Wickman 6-Spindle Automatic Screw Machines [Up to 1-3/4″ Capacity] (16)
Some machines have automatic bar loaders; 4 CUCCHI bar loaders on 4 Davenports.

Rotary Transfer Capabilities

[Up to 45mm capacity]

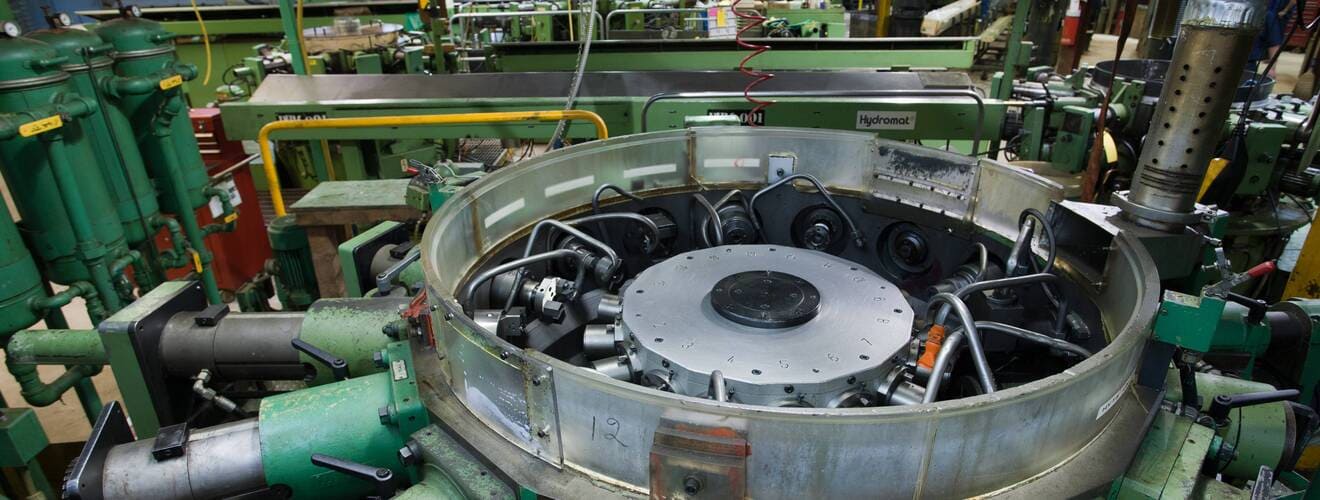

Hydromat HW 25-12 Rotary Transfer Machines [1″ Capacity] (4)
Hydromat HB 45-12 Rotary Transfer Machine [45mm Capacity] (1)
Hydromat HB 32/45-16 Rotary Transfer Machine [1-3/4″ Capacity] (1)

Single Spindle capabilities

[Up to 1-7/8" capacity]

Brown & Sharpe Single Spindle Automatic Screw Machines (12)
- Conventional [Up to 1-7/8″ Capacity] (10)
- With SERVOCAM [Up to 1-1/4″ Capacity] (2)

Secondary Operations

Full secondary operations including machining, milling, drilling, tapping, broaching, centerless and plunge grinding, assembly, and more.

Brown & Sharpe Single Spindle Secondary Operation Automatic Screw Machines {Chuckers} [Up to 1-5/8″ Capacity] (6)
Miyano BNC-34S CNC Turning Centre {Chucker} [34mm Capacity] (1)
Miyano BNC-34T CNC Turning Centre {Chucker} [34mm Capacity] (1)
Miyano TSV-35 CNC Drilling/Tapping Machine (1)

Engineering

Our licensed professional engineers bring a wealth of experience and provide invaluable engineering support to our customers.

Quote Request

Clients submit an initial design and request a quote for a custom machined part for their current estimated annual usage.

Engineering & Estimate

The Engineering and Estimating team review the design and may provide feedback to the client, suggesting enhancements to reduce costs or improve functionality (must be approved by clients).
The Estimator provides lead time, pricing, and notes any changes made to the original design.
If additional specifications or changes are required, these are highlighted to ensure proper revision levels (in metric or imperial units).
Revised drawings are sent to the client for approval, if requested.

First Article Approval

A first article approval process is followed for all new production setups.
If required, sample parts are provided to the client for confirmation before proceeding with the full production run.

Inventory Management & Shipping

Our facility offers extensive storage capabilities for machined parts and components. Once parts are washed and packaged, they are either entered into our inventory system for on-site storage or shipped directly to the client. Utilizing the ECI JobBOSS2 Shop System for computerized inventory control, we efficiently produce and store a client’s annual product requirements while incorporating Just-in-Time (JIT) and Kanban methodologies. This enables us to create a release schedule tailored to their needs—whether weekly, monthly, or custom—ensuring optimal inventory levels and seamless production flow.

Since 1962

Over 60 years of excellence crafting custom machined parts!

150 Milvan Drive, Toronto, Ontario

M9L 1Z9
